EV-(R)S90U EV-(R)S90S90PU DC1000V CQC certified electric vehicle charging cable
Certification Body:
General Administration of Quality Supervision, Inspection and Quarantine
| Certificate No. | Product Types |
| CQC16011142378 | EVDC-(R)SS,EVDC-(R)SSPS,EVDC-(R)S90S90,EVDC-(R)S90S90PS90,EVDC-(R)S90U,EVDC-(R)S90S90PU-1000V |
structure diagram:
Reference standard:GB/T 33594-2017
Product Category:
Product Category:
AC:EVDC-(R)S90U EVDC-(R)S90S90PU-1000V 10-95(2Cores)+PE+4-6(2Cores)+0.5-0.75(P/P2)(1-12Cores)
Construction:
Rated temperature:-40 ~ +90°C
Rated voltage:DC1000V
conductor:Stranded bare or tinned copper
Insulation material:TPE
Sheath material:TPU
Flexible Construction, Resistant to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress, IEC60332-1 flammability test, minimum bending radius 5xOD, easily installation
Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.
Structural parameter table:
| Category | Wire specifications | Reference current (A) | Diameter unshielded (mm) |
| TPE | PU |
| EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V | 3×2.5+2×0.75 | 18 | 12.7 | 11.1 |
| 3×4+2×0.75 | 25 | 14.4 | 12.8 |
| 3×6+2×0.75 | 34 | 16.3 | 14.5 |
| 5×2.5+2×0.75 | 18 | 15.3 | 13.7 |
| 5×4+2×0.75 | 25 | 17.8 | 16.0 |
| 5×6+2×0.75 | 34 | 19.8 | 17.8 |
| 5×10+2×0.75 | 50 | 22.9 | 20.7 |
| 5×16+2×0.75 | 67 | 27.5 | 25.1 |
| EVDC-(R)SS,EVDC-(R)SSPS,EVDC-(R)S90S90,EVDC-(R)S90S90PS90,EVDC-(R)S90U,EVDC-(R)S90S90PU-1000V | 3×25+2×4+2P(2×0.75)+ P(8×0.75) | 100 | 34.0 | 32.0 |
| 2×35+1×25+2×4+2P(2×0.75)+ P(8×0.75) | 125 | 36.0 | 34.0 |
| 2×50+1×25+2×4+2P(2×0.75)+ P(8×0.75) | 150 | 38.0 | 36.0 |
| 2×70+1×25+2×4+2P(2×0.75)+ P(8×0.75) | 200 | 40.5 | 38.0 |
| 2×80+1×25+2×4+2P(2×0.75)+ P(8×0.75) | 250 | 42.0 | 39.0 |
| 2×95+1×35×4+2P(2×0.75)+ P(8×0.75) | 300 | 44.0 | 41.5 |
1. The detailed dimensions are subject to the product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.
Product Tags:
|
|

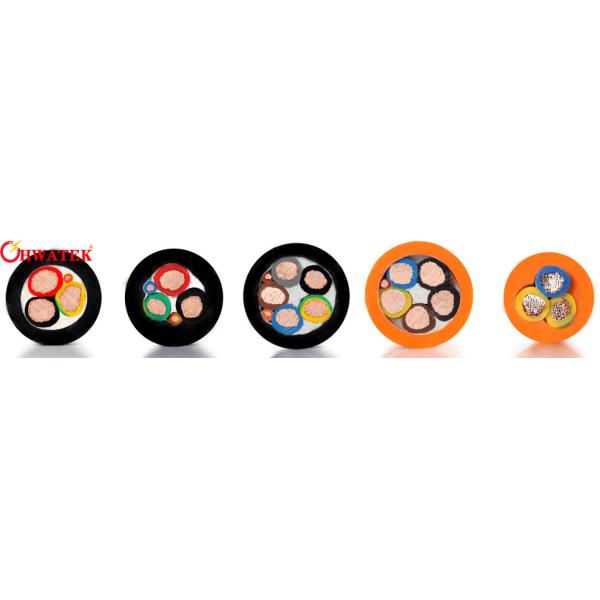

CQC Certified TPU Sheath DC1000V EV Charging Cable Images
|
